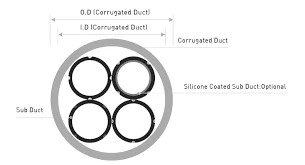

HDPE-CD 110 mm OD, With 4 Sub-ducts, 38 mm OD

Description

Material-HDPE,PE100
Nominal Inside Dia HDPE-CD, Main Duct-90 ±2 mm
Nominal Outside Dia HDPE-CD, Main Duct-110 ±2 mm
Nominal Thickness HDPE-CD, Main Duct-2.5 ±0.5 mm
Nominal Outside Dia HDPE, 4 Sub-Duct-38 ±1 mm
Nominal Inside Dia HDPE, 4 Sub-Duct-32 ±1 mm
Nominal Thickness HDPE, 4 Sub-Duct-2.8 ±0.5 mm
Compound Density @ 25°C-0.95 g/cm3, min
HDPE-CD ( with 3-42 mm OD sub-ducts )Pipe Stiffness @ 5% Deflection, average-21 kgf/cm²
HDPE-CD 110 mm OD ( Empty main duct ) Pipe Stiffness @ 5% Deflection, average-15 kgf/cm²
HDPE-CD ( with 3-42 mm OD sub-ducts ) Compressive Strength @5% Deflection, average-950 kgf/m
HDPE-CD 110 mm OD ( Empty main duct ) Compressive Strength @5% Deflection, average-660 kgf/m
Tensile Strength @ Yield (film properties)-30 MPa
Elongation @ Break (film properties)-400%
Nominal Pressure (Sub-duct)-16 Bar
Hydrostatic Strength (Sub-duct)-8 MPa
Environmental Stress Crack Resistance (ESCR), F20-192 h, Condition C.
Carbon Black Content-2%
Water Absorption-0.03%, maximum
Voltage Resistance-2,000 Vac, (> 15 min.)
Insulation Resistance-> 200 Mohm
Standard Length Meter/Roll-300/500/Custom
